RCM Industries

Features:

• Direct-reading dial calibrated in GPM (Gallons Per Minute) for instant flow indication
• 7000 Series with NPT internal thread connection for standard pipeline installation
• 8000 Series with wafer-style flange connection for easy maintenance and removal
• Bronze or 316 stainless steel body construction for corrosion resistance
• Built-in nozzle differential pressure measurement with no moving parts
• Standard maximum working pressure: 180 PSIG (optional 400 PSIG high-pressure version)
• No external power supply or transmitter required for flow indication

Liquid Flow Meters (Water / Oil) Advantages:

• Eliminates need for separate differential pressure transmitter and flow computer
• Direct dial reading reduces operator error and simplifies process monitoring
• No moving parts design ensures long-term reliability and minimal maintenance
• Compact all-in-one design saves panel space and reduces installation costs

Applications:

Water treatment plant flow monitoring, cooling tower circulation systems, HVAC chilled water and hot water loops, boiler feedwater measurement, hydraulic system flow checking, oil transfer and lubrication systems, chemical process liquid metering, and any industrial application requiring reliable direct-reading liquid flow measurement.

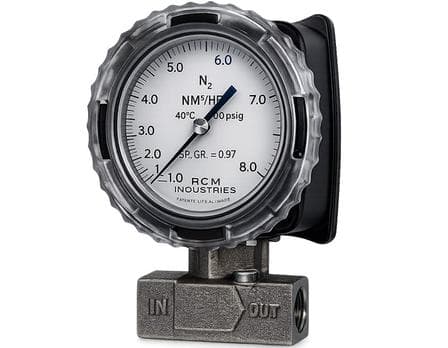

Features:

• Direct-reading dial calibrated in Nm³/hr or SCFM for standard gas flow indication
• Built-in gas specific gravity (SG) correction factor for accurate multi-gas measurement
• Compatible with nitrogen (N₂), compressed air, carbon dioxide (CO₂), and other industrial gases
• Differential pressure nozzle design with no rotating or wearing components
• Standard pressure rating: 180 PSIG (high-pressure 400 PSIG option available)
• All-metal construction suitable for industrial gas distribution systems
• Direct mechanical indication requires no electrical power or signal wiring

Gas Flow Meters (N₂, Air, CO₂) Advantages:

• Specific gravity correction allows single meter to service multiple gas types
• No electrical components makes it ideal for hazardous or explosion-risk areas
• Maintenance-free operation eliminates downtime for calibration and servicing
• Lower total cost of ownership compared to electronic mass flow meters

Applications:

Nitrogen gas distribution monitoring, compressed air system flow measurement, CO₂ injection process control, inert gas blanketing systems, gas mixing and blending operations, food and beverage gas metering, pharmaceutical process gas monitoring, and industrial gas supply line flow indication.

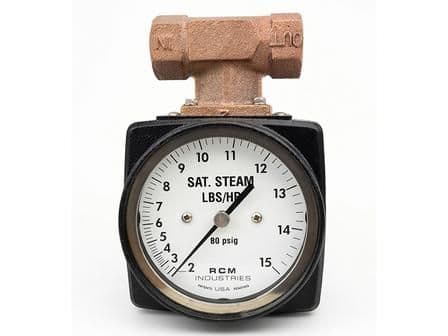

Features:

• Direct-reading dial calibrated in LBS/HR (Pounds Per Hour) for steam mass flow
• Specially designed for saturated steam measurement up to 120 PSIG working pressure
• Built-in nozzle differential pressure element with steam-specific calibration
• Robust construction withstands high-temperature steam environment
• Standard maximum pressure: 180 PSIG (400 PSIG high-pressure option)
• No external condensate pots or impulse lines required
• Direct mechanical indication without need for steam flow computer

Saturated Steam Flow Meters Advantages:

• Direct LBS/HR reading eliminates need for steam table lookup and calculations
• Integrated design avoids complex steam condensate piping and trapping systems
• No electronic components ensures reliable operation in high-temperature steam lines
• Simplified installation reduces engineering and commissioning costs

Applications:

Boiler steam output monitoring, process steam consumption metering, HVAC steam heating system flow indication, food processing steam injection, sterilization and autoclave steam supply, textile industry steam distribution, chemical plant steam header monitoring, and any saturated steam application requiring direct-reading mass flow measurement.
